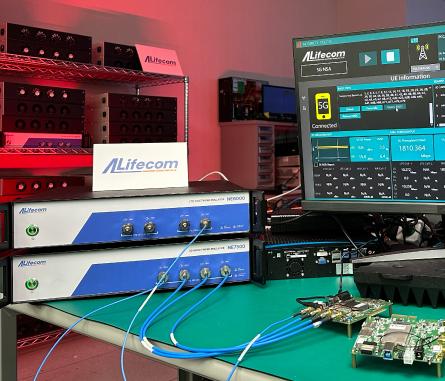

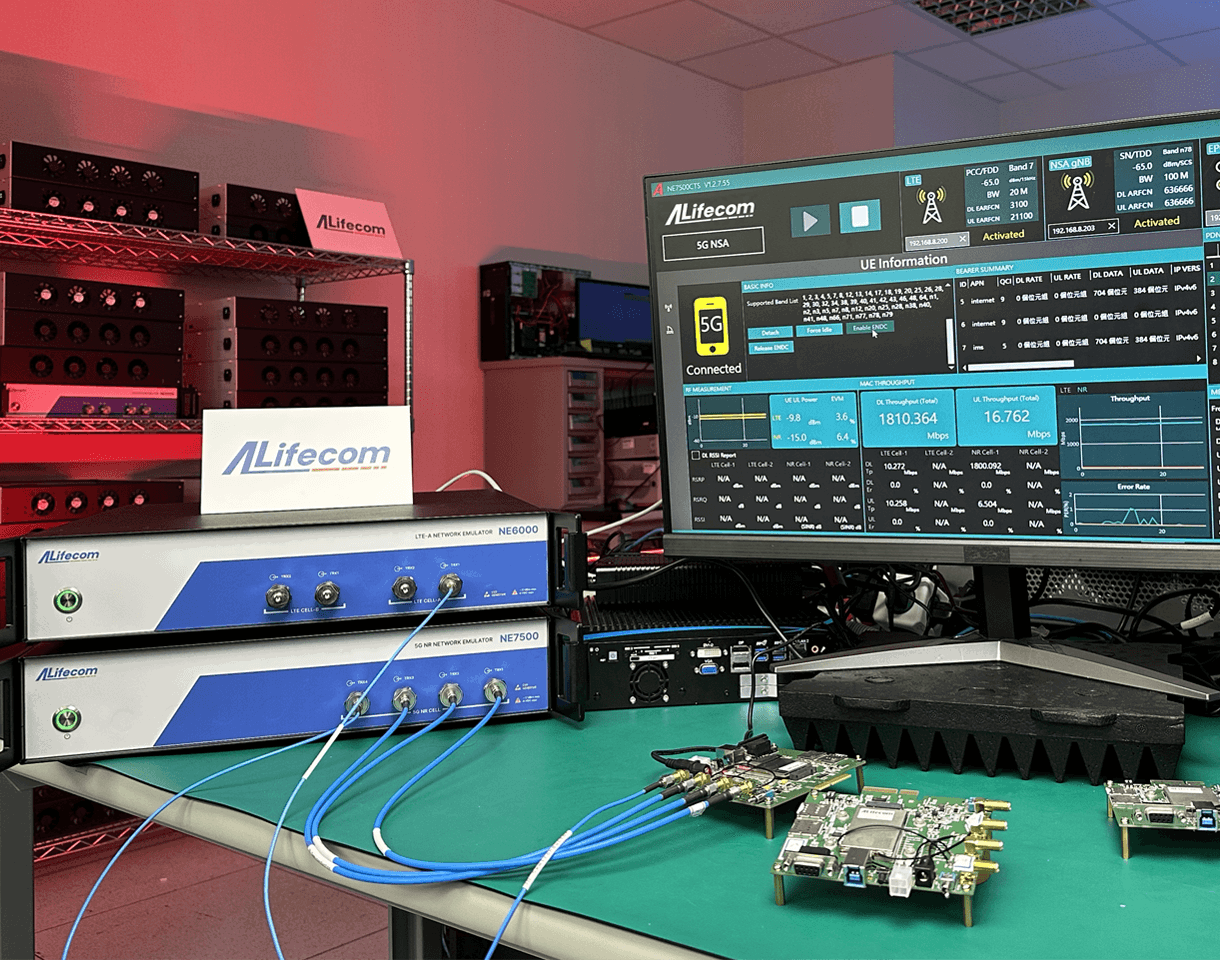

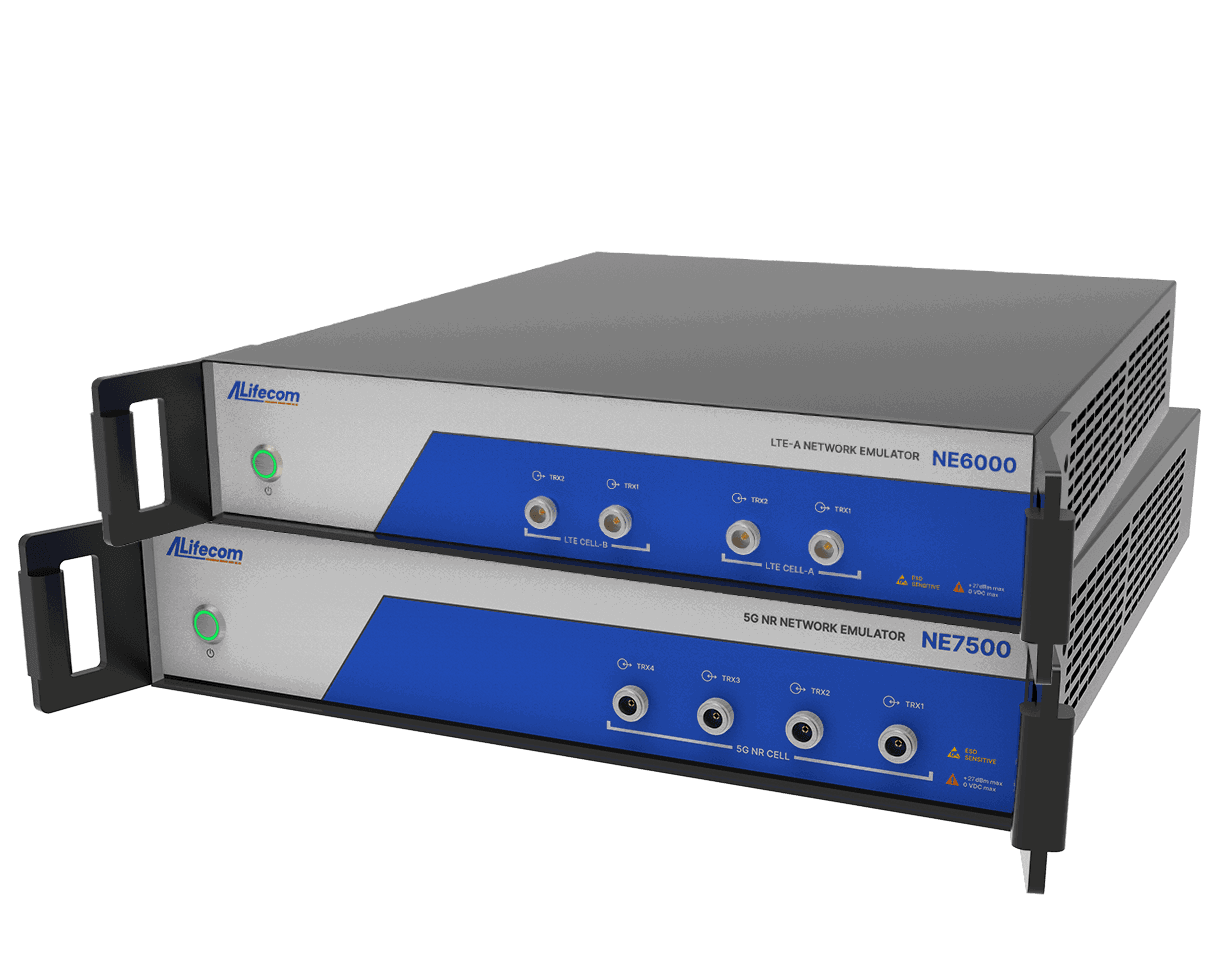

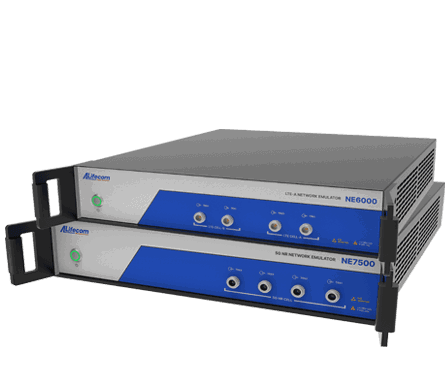

NE6000+NE7500 5G NSA 网络仿真仪
LTE/5G 信令测试系统

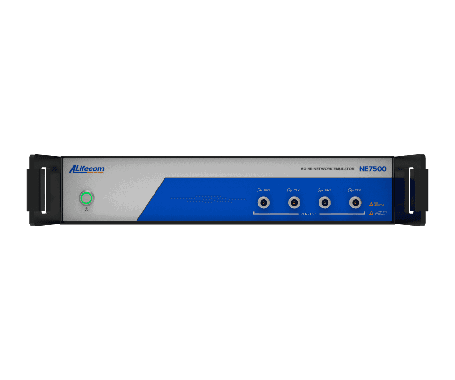

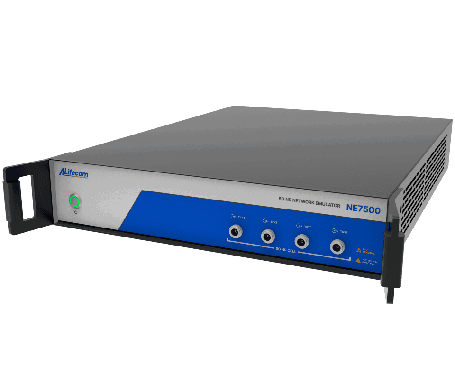

The ALifecom NE7500 是一个测试系统，旨在模拟蜂窝网络的各个單元，以测试用户设备（如智能手机、平板电脑和其他智能终端设备）的性能和功能。它包括符合3GPP标准的组件，如gNodeB和5G核心网（5GC）。
该系统用于多种用途，包括研发回归测试、稳定性测试和生产线终端验证。它可用于执行射频测量、IP/MAC吞吐量测试、MIMO测试、小区间和小区内切换测试以及用户体验测试。这些测试有助于确保用户设备正常运作，并满足在蜂窝网络中使用所需的性能标准。
NE6000+NE7500 5G NSA 网络仿真仪 Specifications
Mobile Carrier
5G NR Rel.16
Frequency Range
400MHz - 6000MHz
Frequency Bandwidth
Up to 100 MHz Frequency BW
Antenna Mode
Up to 4x4 DL MIMO
Number of RF Port
4
Networking
Up to 4x4 DL MIMO
Frequency Resolution
1 MHz
Reference Frequency
10 MHz
Signal Bandwidth
Up to 100 MHz
RF Input/Output Impedance
50 Ω
Power Consumption
< 150 W
Calibration Cycle
12 months (recommended)
Warranty
12 months hardware with software updates
Transmission Signal
Maximum Level
-35 dBm
Output Level Range
-100 to -35 dBm
Output Level Accuracy
Level ≥ -60 dBm ±1 dB, Level <-60 dBm ±1.5 dB
Output Level Resolution
0.1 dB
Output EVM Accuracy
< 2 %
Access Method
OFDMA
Modulation Method
QPSK/ 16QAM/ 64QAM/ 256QAM
Received Signal
Maximum Input Level
+27 dBm
Input Power Level
-40 to +27 dBm
Input Level Accuracy
±1.0 dB
Access Method
CP-OFDM
Modulation Method
QPSK/ 16QAM/ 64QAM
| SW Tools |
| ATS = 1-DUT production test SW |

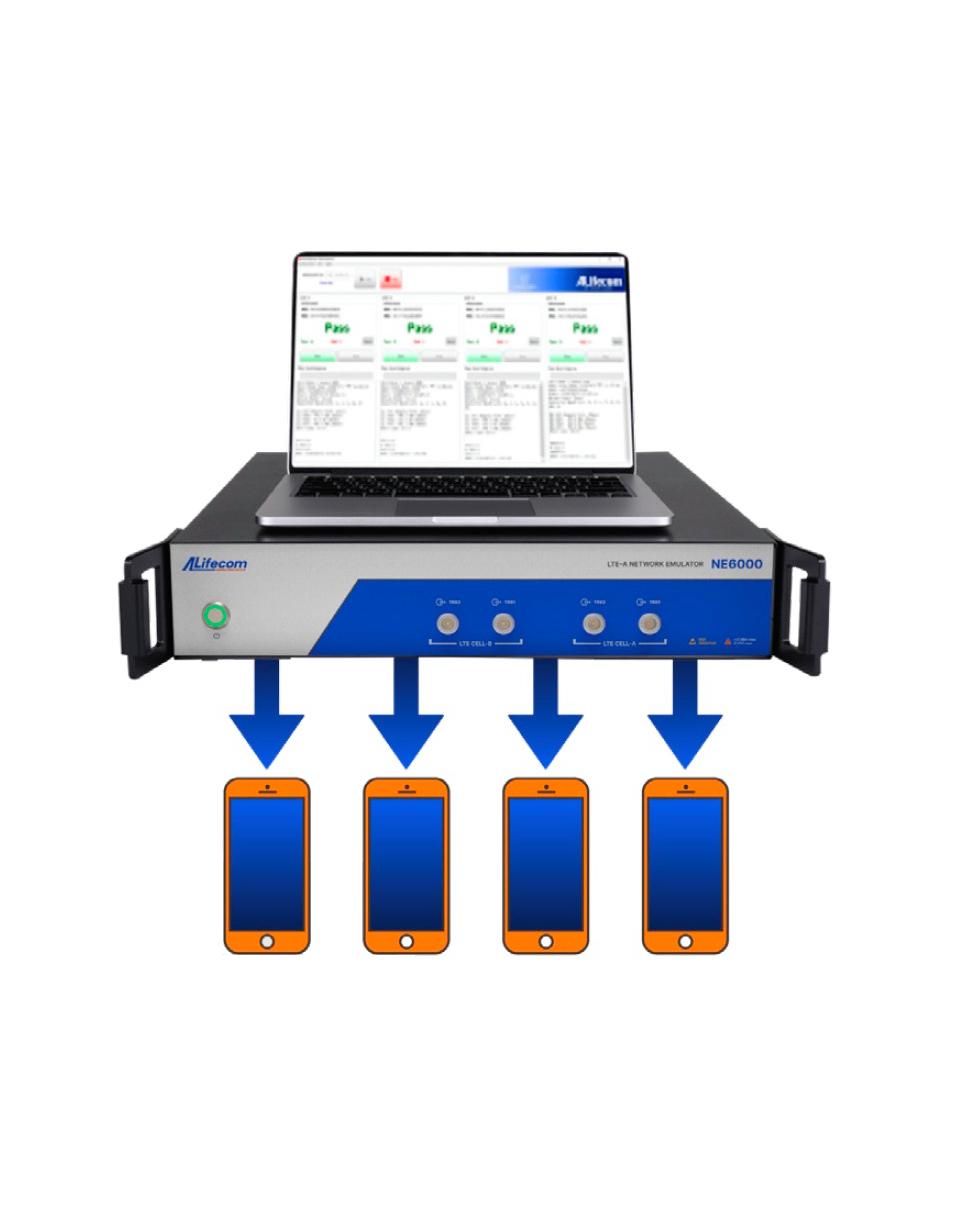

| iATS = multi-OUT (max. 4 UE's) for production test |

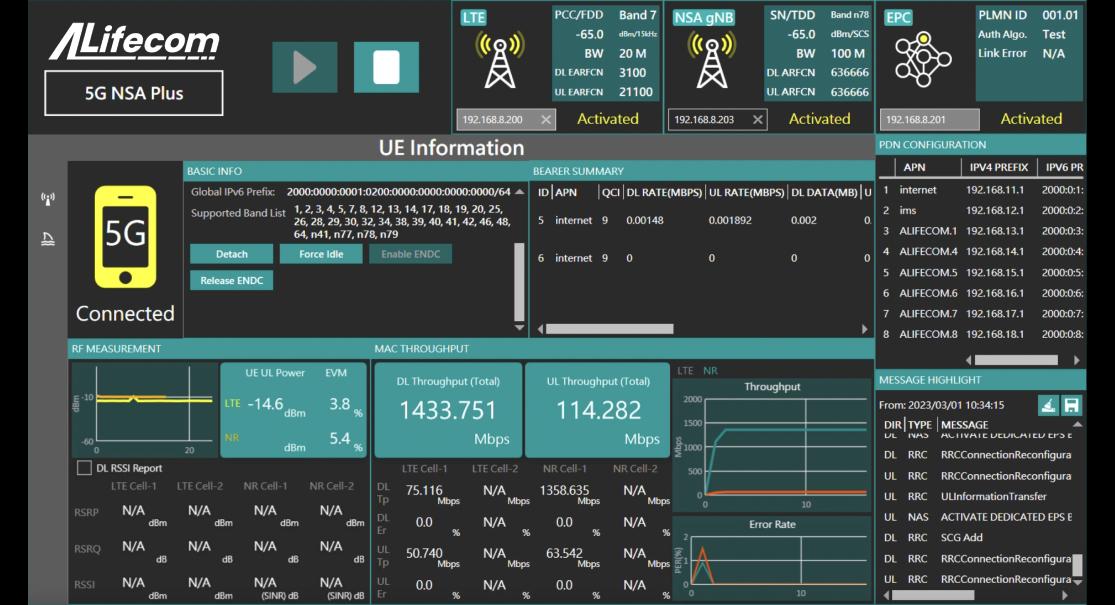

| MTS = Generic GUI for NE7500 |
| CTS = Advanced GUI with applications test function and protocol analyzer for NE6000/NE7500 |
