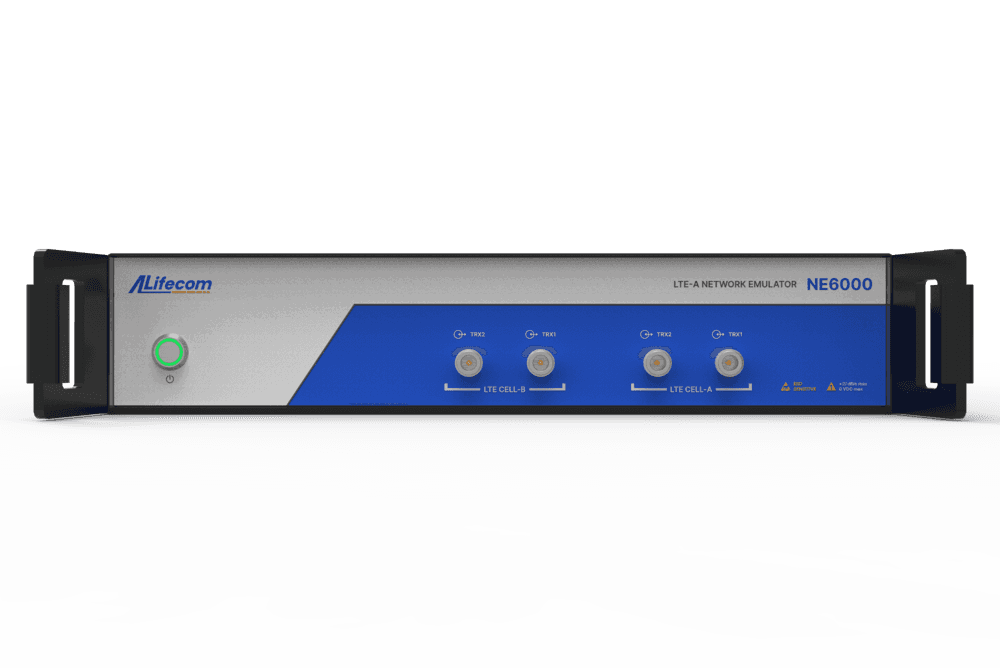

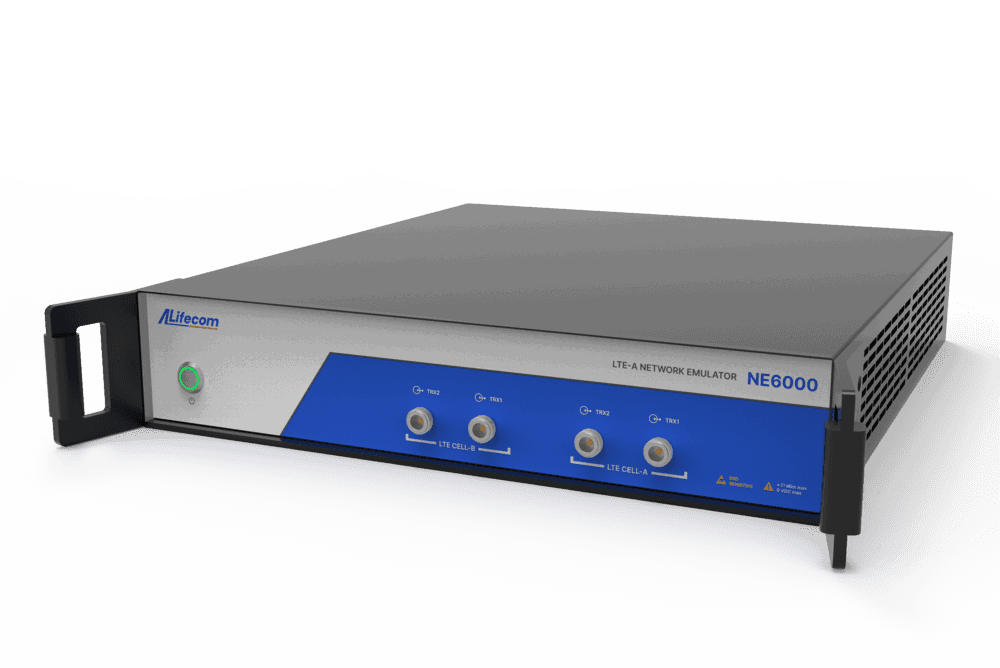

NE6000 LTE-A 网络仿真仪

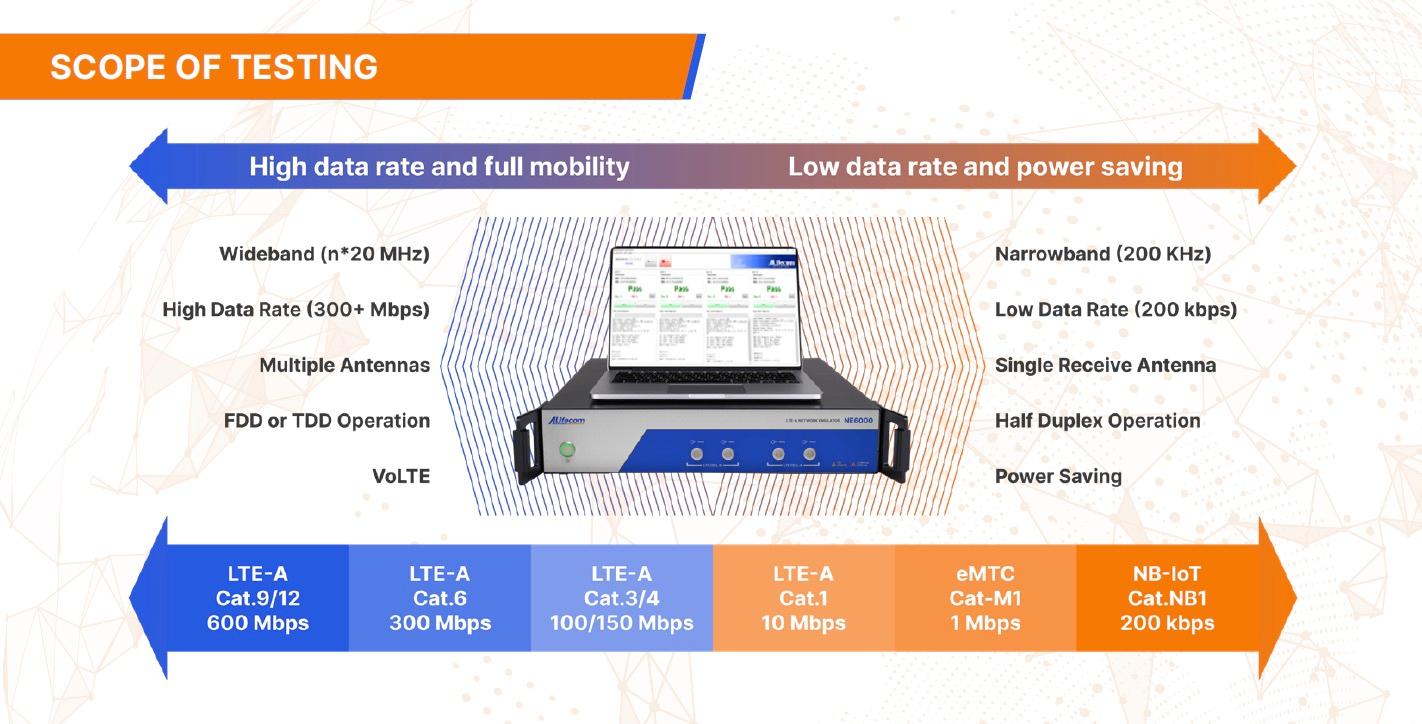

Cat.6/NB-IOT/eMTC 智能终端设备之信令测试解决方案

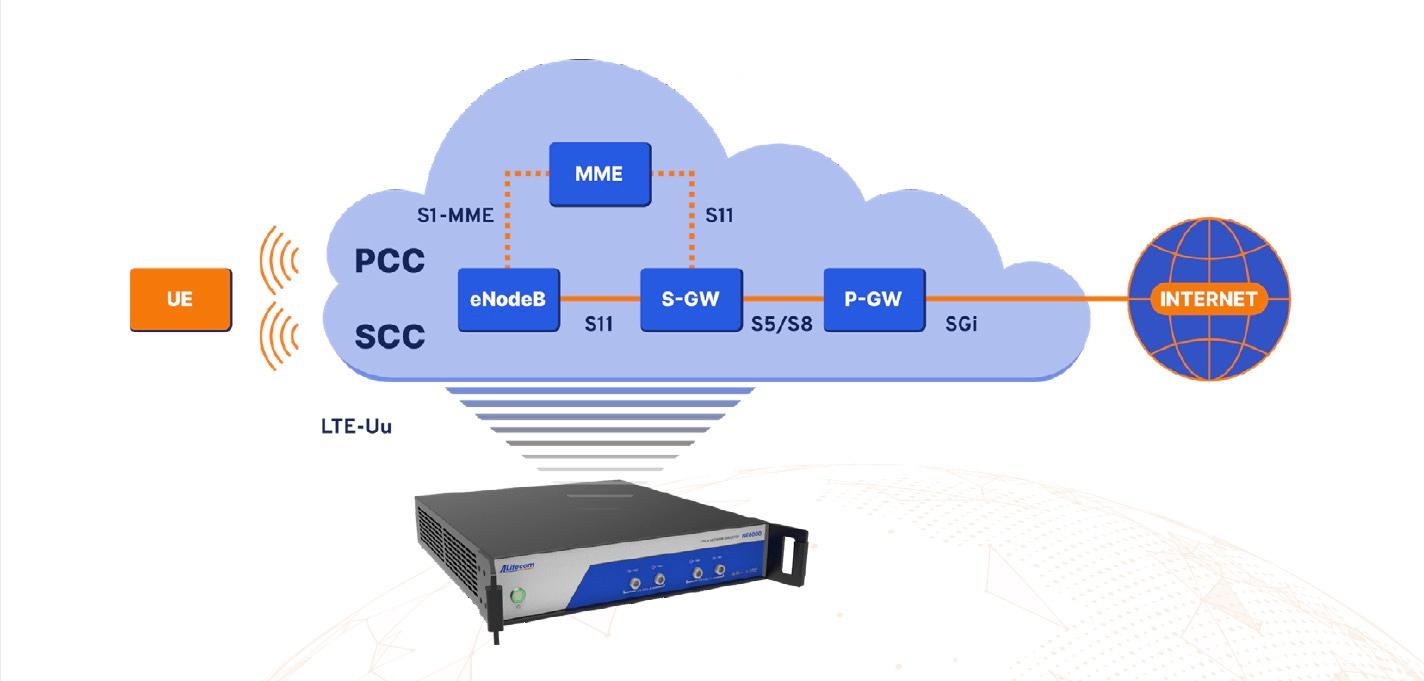

The ALifecom NE6000 是一种用于测试和诊断长期演进（LTE）和LTE-Advanced（LTE-A）通信系统问题的测试系统。NE6000模拟完整的LTE-A网络系统，包括基站（eNB ）和核心网（EPC）。
NE6000可用于执行与LTE和LTE-A信令相关的各种测试项目，并为4G智能终端设备（UE）的开发和调试提供一系列的诊断和故障排除能力。 NE6000还提供了一个簡洁的选项，可用于生产线和质量保证/质量控制（QA/QC）测试。
NE6000 LTE-A 网络仿真仪 Specifications
Mobile Carrier
5G NR Rel.14
Frequency Range
400MHz ~ 3800MHz
Frequency Bandwidth
1.4/3/5/10/15/20 MHz
Data Rate
DL: 150 Mbps (20 MHz, 2x2 MIMO)
UL: 40 Mbps (20 MHz)
Category
CAT. 4 ( upgradable: Cat.6 - Cat.12/ eMTC/ NB-IoT)
Antenna Mode
1x1 SISO/ 2x2 DL MIMO
Number of RF Port
2 ( upgradable: Cat.6 for 4 ports)
QoS
GBR/ non-GBR and traffice prioity
Security
AES/ Snow3G
Networking
MME/ S-GW/ P-GW full function
Number of PDN
8
Frequency Resolution
1 MHz
Reference Frequency
10 MHz
Signal Bandwidth
Up to 100 MHz
RF Input/Output Impedance
50 Ω
Computer Control Interface
Gigabit Ethernet
Weight
10 Kg
Power Consumption
<150 W
Calibration Cycle
12 months (recommended)
Warranty
12 months hardware with software updates
Transmission Signal
Maximum Level
-35 dBm
Output Level Range
-100 to -35 dBm
Output Level Accuracy
Level ≥–60 dBm ±1 dB, Level <–60 dBm ±1.5 dB
Output Level Resolution
0.1 dB
Output EVM Accuracy
<2 %
Access Method
OFDMA
Modulation Method
QPSK/16QAM/64QAM/256QAM
Received Signal
Maximum Input Level
+27 dBm
Input Power Level
-40 to +27 dBm
Input Level Accuracy
±1.0 dB
Access Method
CP-OFDM
Modulation Method
QPSK/16QAM/64QAM
| SW Tools |
| ATS = 1-DUT production test SW |
| iATS = multi-OUT (max. 4 UE's) for production test |
| MTS = Generic GUI for NE7500 |

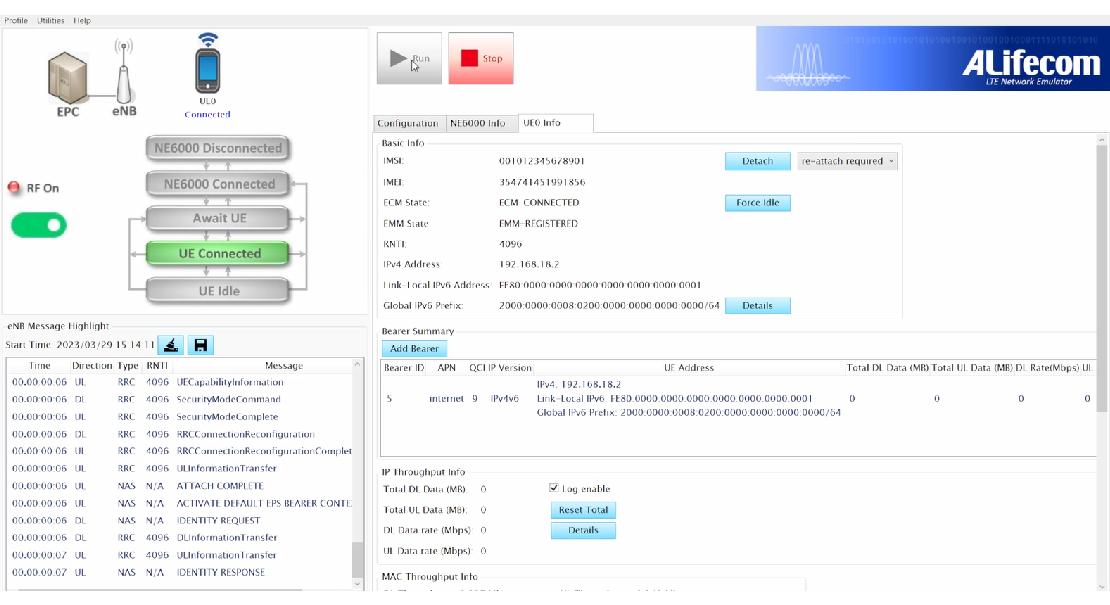

| CTS = Advanced GUI with applications test function and protocol analyzer for NE6000/NE7500 |
