HOMEPRODUCTSNE6000+NE7500 5G NSA Network Emulator

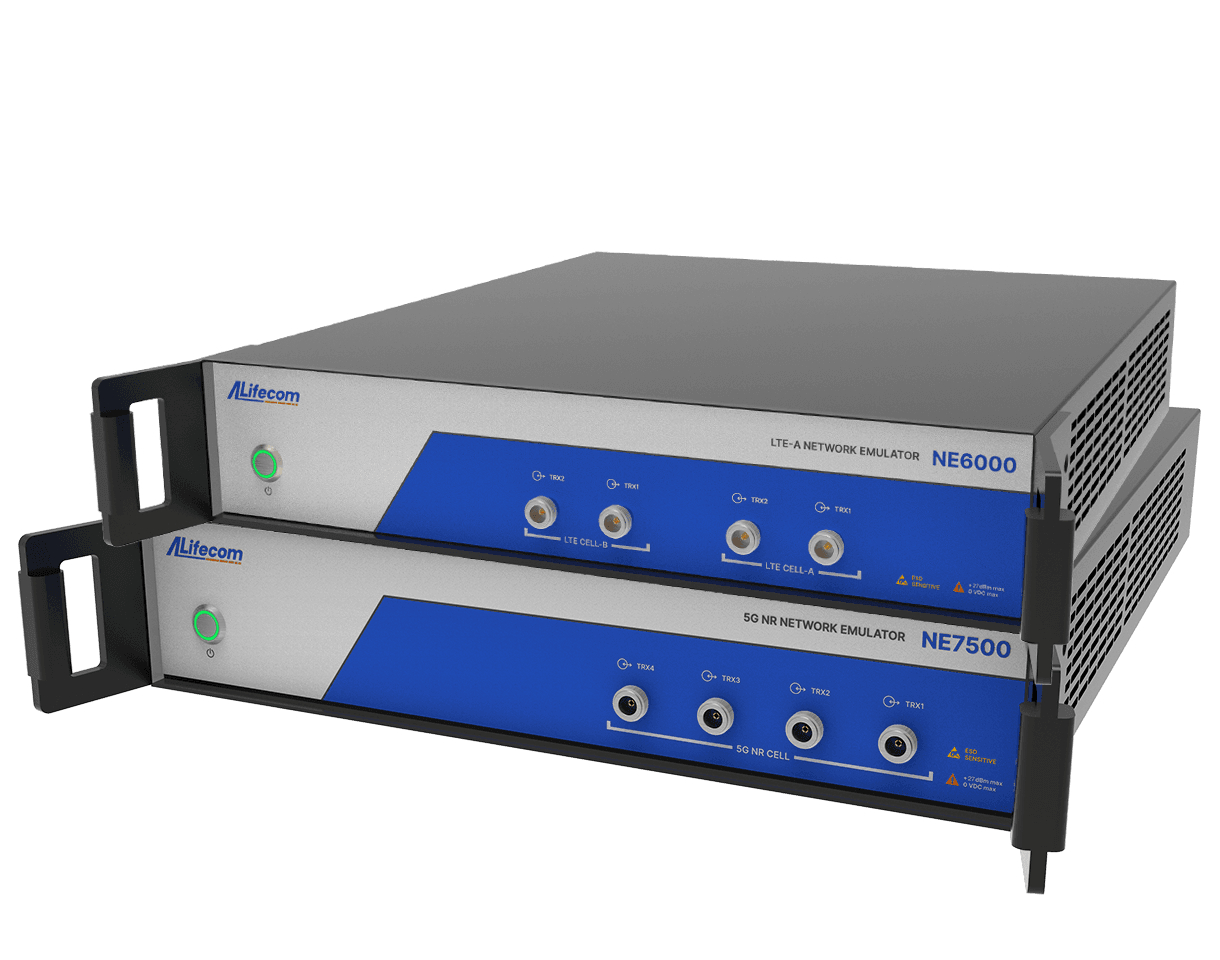

NE6000+NE7500 5G NSA Network Emulator

LTE/5G SIGNALING TEST SYSTEM

The ALifecom NE7500 is a test system designed to simulate various aspects of a cellular network for the purpose of testing the performance and functionality of user equipment (UE), such as smartphones, tablets, and other wireless devices. It includes 3GPP compliant components such as a gNodeB and a 5G Core (5GC) .

The system is used for a variety of purposes, including R&D regression testing, stability testing, and  end-of-production line  verification.  It  can be used to perform RF measurements, IP/MAC throughput tests, MIMO tests, inter- and intra-cell handover tests, and user experience tests. These tests can help ensure that the UE is functioning properly and meets the performance standards required for use in a cellular network.

GET A QUOTE
4G/5G TEST ITEMS
Feature

Signaling Testing Features

■ Frequency Range: FR1 and FR2(with MM100)

■ Bandwidth Up to 100MHz

■ NSA/SA Mode

■ iPerf IP/MAC layer Throughput Testing

■ RF Parametric measurement (PWR/EVM/ACLR/Spectrum Mask/OBW)

■ UL UE Max PWR Testing/DL RSSI Reporting/UE RX Sensitivity Testing

■ Inter/Intra Cell Handover

■ Embedded Protocol Analyzer

■ Carrier Aggregation:

LTE-A: 2CA DL 2x2 MIMO,

5G NR FR1/FR2: 2CA DL 4x4 MIMO

PRODUCT VIDEO
Feature

SMARTER EVERY STEP OF THE WAY

ALifecom is a leading provider of wireless communication signal testing solutions, specializing in network testing solutions for top industrial and consumer electronics manufacturers worldwide. With multiple core technology patents, we are committed to delivering industry-leading mobile network testing solutions for cell phones, designed to serve top industrial and consumer electronics manufacturers globally.
We have focused on researching and developing advanced wireless communication technology for many years. Our research and development team has accumulated extensive technical expertise in various wireless communication technologies, including 5G NTN, 5G, 4G LTE/LTE-A, WiFi, eMTC, NBIoT, small cell, and the latest 5G NR technology, focusing on wireless communication technology related to the terminal and base station (including base station and core network) of cellular mobile networks.

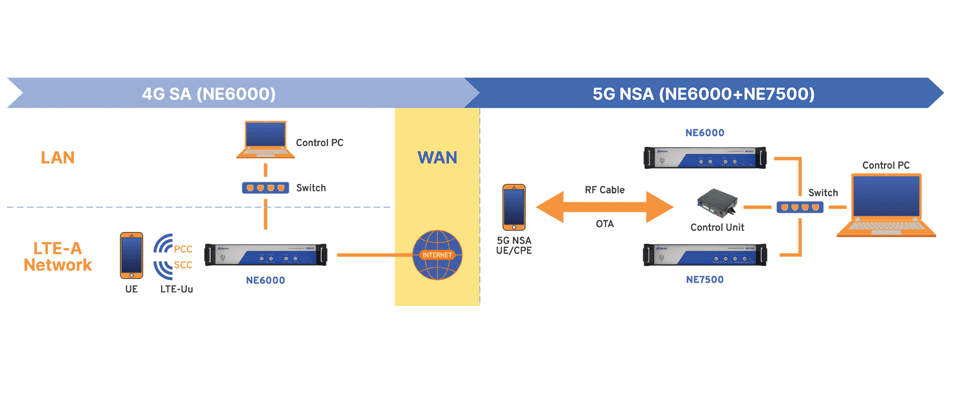

SIGNALING TEST SOLUTION
Feature

4G SA - NE6000 Network Emulator

5G NSA - NE6000+NE7500 Network Emulator

FEATURES
Feature

5G NSA Mode Key Features

Compliant with 3GPP 5G NR Release 16

Primary Cell: 4G LTE-A FDD/TDD Dual Mode (NE6000)

Secondary Cell: 5G NR FDD/TDD Dual Mode (NE7500)

DL 2x2 MIMO for 4G LTE-A and DL 4x4 MIMO for 5G NR

Frequency Range 400MHz ~ 6GHz

Up to 20 MHz Frequency BW for 4G LTE-A and 100 MHz Frequency BW for 5G NR

5G SA Mode Key Features

Compliant with 3GPP 5G NR Release 16

5G NR FDD/TDD Dual Mode (NE7500)

DL 4x4 MIMO

Frequency Range 400MHz ~ 6GHz

Up to 20 MHz Frequency BW

Modulation Scheme Up to 256QAM in DL and 64QAM in UL

SOFTWARE FEATURES
Feature

Friendly GUI and Useful Software Tools

1TX EVM

2TX Power

3RSSI

4DNN (APN)

5DL/UL MAC Throughput

1
2
3
4
5
6
7
8
9
10

6UE Status

7Band List

8ENDC

9Link Status

10RRC/NAS

ALifecom provide a range of software tools ( CTS, MTS and ATS) that can be used to cover various testing scenarios and segments in the development and integration of 5G NR SA/NSA devices as well as LTE devices.




SW Tools

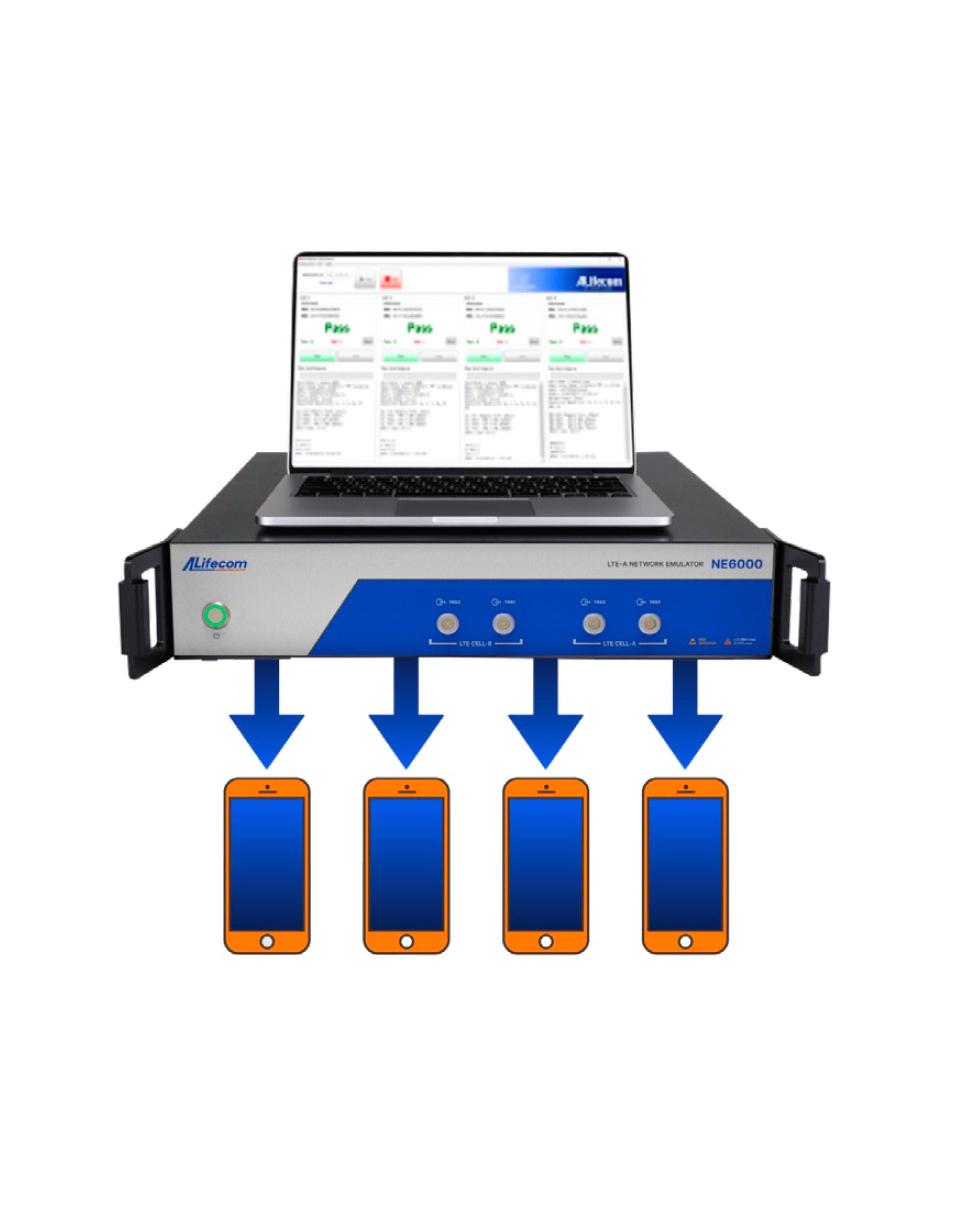

ATS  = 1-DUT production test SW
iATS = multi-OUT (max. 4 UE's) for production test
MTS = Generic GUI for NE7500
CTS  = Advanced GUI with applications test function and protocol analyzer for NE6000/NE7500


APPLICATIONS
Feature

SMART FACTORY

LTE/LTE-A/5G EMULATING

INTERNET OF VEHICLE

5G SMART MANUFACTORING
